5 Pin Poles PCB Screw Fuse Terminal Block With 2PCS 5x20mm Fuses

Product Categories
Dongguan Tianrui Electronics Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

5 Pin Poles PCB Screw Fuse Terminal Block With 2PCS 5x20mm Fuses

Brand Name : Tianrui

Model Number : FT06-5W

Certification : VDE CQC

Place of Origin : China

MOQ : 1000pcs

Price : Negotiable

Payment Terms : T/T, Paypal, Mastercard, Wetern Union, Alipay, etc

Supply Ability : 1000000PCS per Month

Delivery Time : 5-7 work days

Packaging Details : PE bag, Bulk

Product Name : 5 Pole Fuse Terminal Block

Rated Current : 6.3A

Rated Voltage : 250V

Rated Temperature : -40°C to 110°C

Fuse Size : 5x20mm

Fire Rating : UL 94V-2

Color : Gray

Pole : 5 Poles

Type : Fuse Block

Packing : 400PCS

Contact Now


5 Pin Poles PCB Screw Fuse Terminal Block with 2PCS 5x20mm Fuses


1. Housing : Polyamide 6/6 94V-2 grade
2. Metal Part : nickel plated, metal-alloy insert

3. Terminal Screw : M3 X 6 zinc plated
4. Earthing Screw : M3 X 14 zinc plated
5. Voltage/Ampere :

- Fuse Holder : 250V/6.3A

- Terminal : 450V/32A

6. Temperature : -40℃ to 110℃


Features of 5 Pin Poles PCB Screw Fuse Terminal Block

- European Standard fused terminal for 5 x 20mm EU-fuse
- Choice of 1-5 poles; interlocking fused terminals
- With / without Earth-Screw or Anti-Rotation Spigot

FT06-5W 5 Pin Poles PCB Screw Fuse Terminal Block

Model number FT06-5W
Electrical parameters
IEC/EN
Fuse HolderTerminal
Rated voltage(V)250450
Rated current(A)6.332
Operating tempPolyamide 66(V-2)T55
Connection parameters
IEC/EN standard
Connection capacitySolid core wire2.5-4.0mm²0.5-4.0mm²
Stranded wire2.5-4.0mm²0.75-4.0mm²
Flexible wire2.5-4.0mm²0.75-4.0mm²
Stripping length (mm)7-8
WiringScrew locking
Screw sizeM3
Repeatable wiring√
Monopolar/MultipolarMultipolar
Pole5
Product fixing methodScrew
Materials
Insulation materialsMaterialPolyamide 66
Fire ratingUL 94V-2
ClampsCopper, stainless steel (wire shrapnel)
Matching product
Tube fuse5x20mm
Packing quantity
400


5 Pin Poles PCB Screw Fuse Terminal Block With 2PCS 5x20mm Fuses

5 Pin Poles PCB Screw Fuse Terminal Block With 2PCS 5x20mm Fuses

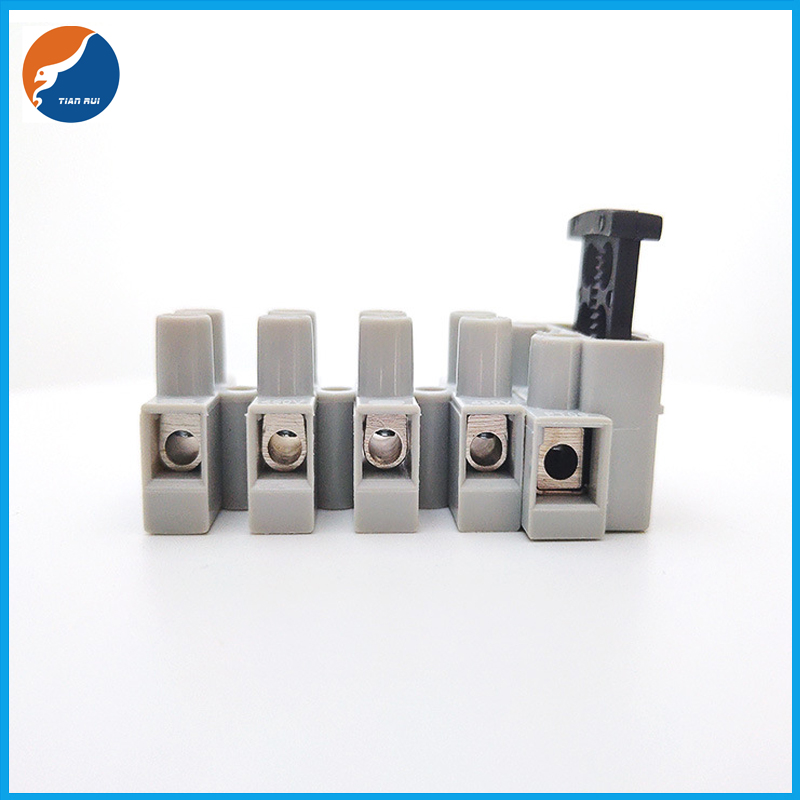

Pictures of 4 Pole Pin Fuse Holder Terminal Block

5 Pin Poles PCB Screw Fuse Terminal Block With 2PCS 5x20mm Fuses

5 Pin Poles PCB Screw Fuse Terminal Block With 2PCS 5x20mm Fuses

5 Pin Poles PCB Screw Fuse Terminal Block With 2PCS 5x20mm Fuses


Application of 4 Pole Pin Fuse Holder Terminal Block

Scope of application: connecting parts of single or multi-strand wires such as electromechanical, electrical control, power supply, home appliances, lighting, machinery, etc.

5 Pin Poles PCB Screw Fuse Terminal Block With 2PCS 5x20mm Fuses


All Kinds of Fuse Terminal Blocks

5 Pin Poles PCB Screw Fuse Terminal Block With 2PCS 5x20mm Fuses
