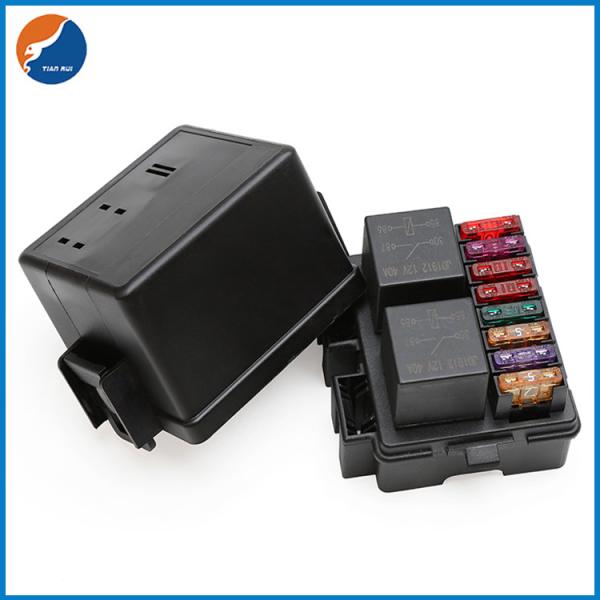

40A 12V 24V 32V 48V Waterproof Auto Fuse Block Relay Box 8PCS ATO Fuses 2PCS Relays For Car Marine Boat

Universal Auto ATC ATO Fuse Holder Waterproof Style Relay Relay Block Box for Automotive Vehicles Cars Marine Boat

A relay fuse box, also known as a relay panel or fuse and relay box, is an electrical distribution panel that houses a combination of fuses and relays used to protect and control various electrical circuits in a vehicle or building. It is typically located in the engine compartment or interior cabin, depending on the specific application.

Specification of Universal Auto ATC ATO Fuse Holder Waterproof Style Relay Relay Block Box

Features of Universal Auto ATC ATO Fuse Holder Waterproof Style Relay Fuses Block Box

Housing: The relay fuse box is usually a rectangular or square-shaped housing made of plastic or metal. It is designed to provide protection and organization for the fuses and relays inside.
Cover: The box has a removable cover that can be lifted or opened to access the fuses and relays. The cover often includes labels or diagrams indicating the purpose and location of each fuse and relay.
Fuses: Fuses are safety devices designed to protect electrical circuits from overloading or short circuits. The fuse box contains multiple fuse slots where individual fuses can be inserted. Each fuse slot corresponds to a specific electrical circuit or component and is rated to handle a specific amount of electrical current. When a circuit experiences an overload or short circuit, the fuse will "blow" or break the circuit, preventing damage to the system.
Relays: Relays are electromagnetic switches that allow low-current control signals to control high-current circuits or devices. They serve as an intermediary between the electrical control system (such as switches or computer modules) and the high-current electrical components. The relay box provides slots or sockets to hold the relays securely.
Wiring connections: The relay fuse box has multiple input and output terminals for connecting the electrical wiring from various systems and components. These terminals are typically marked or labeled to indicate their purpose and intended connections.
Mounting: The relay fuse box is designed to be mounted securely within the vehicle or building. It may be located in the engine compartment, interior cabin, or other accessible areas depending on the specific application.


Application of Universal Auto ATC ATO Fuse Holder Waterproof Style Relay Fuses Block Box

1.Automotive Industry: In automobiles, the relay fuse box is typically located in the engine compartment or interior cabin. It serves as a centralized distribution point for fuses and relays that control electrical systems such as lighting, ignition, fuel pump, power windows, wipers, and other components. It ensures the protection of circuits and allows for easy troubleshooting and maintenance.

2.Residential and Commercial Buildings: In electrical distribution panels for residential and commercial buildings, a relay fuse box is often used to protect and control circuits. It can house fuses or circuit breakers and relays that control lighting, HVAC systems, security systems, pumps, motors, and other electrical devices. The fuse box helps prevent overloads, short circuits, and electrical fires.

3.Industrial Control Systems: In industrial settings, relay fuse boxes are employed to manage and safeguard electrical systems. They play a crucial role in controlling heavy machinery, motors, conveyors, pumps, and other industrial equipment. The fuse box provides protection against electrical faults, overloads, and provides a means for isolating and troubleshooting specific circuits.

4.Marine Applications: Relay fuse boxes are used in marine vessels to manage electrical systems on board. They are responsible for controlling navigation lights, bilge pumps, engine controls, communication equipment, and other marine-specific systems. The fuse box ensures reliable operation and protection of circuits in the marine environment.

5.Recreational Vehicles (RVs) and Boats: Similar to automotive and marine applications, relay fuse boxes are utilized in RVs and boats to control and protect electrical systems. They manage the operation of lights, appliances, HVAC systems, water pumps, entertainment systems, and more. The fuse box ensures safe and efficient electrical distribution on board.

6.Industrial Machinery: Relay fuse boxes are commonly found in industrial machinery and equipment. They provide circuit protection and control for motors, pumps, conveyors, robotics, PLCs (Programmable Logic Controllers), and other electrical components. The fuse box enables proper functioning, troubleshooting, and maintenance of the machinery.
